Bose L1 Pro8 Portable Line Array System

($1,999.00 incl GST)

L1 Pro8 | L1

As the most portable L1 Pro system, the L1 Pro8 portable PA is ready whenever you are. With an 8-driver articulated C-shape line array, the L1 Pro8 delivers 180-degree horizontal sound coverage, making it an ideal companion for shows in small venues like coffee shops and cafes. An integrated subwoofer with a RaceTrack driver delivers powerful bass without the bulk; a built-in multi-channel mixer offers EQ, reverb, and phantom power, plus Bluetooth® streaming and access to the full library of ToneMatch presets; and the intuitive Bose Music app, formerly known as the L1 Mix app places wireless control in your hands from your smartphone. It’s an ultra-portable system with a surprising size-to-performance ratio. The L1 Pro8 gives singer-songwriters and DJs both setup simplicity and supreme clarity — the power to sound your best and simply perform.





FEATURES



  • Generous coverage: C-shaped line array featuring 8 articulated 2-inch neodymium drivers; 180-degree horizontal coverage with wide vertical dispersion, allowing your audience to hear clearly whether they are seated or standing, even off to the extreme sides in small to medium venues

  • Deliver premium full-range sound with consistent tonal balance for singer-songwriters, mobile DJs, and more

  • Maintain supreme vocal and instrument clarity with a C-shape extended-frequency line array featuring 8 articulated 2-inch neodymium drivers and wide 180-degree horizontal coverage

  • Bring more bass with less bulk with an integrated subwoofer featuring a 7 × 13-inch high-excursion RaceTrack driver; performance that rivals traditional round drivers with a smaller footprint

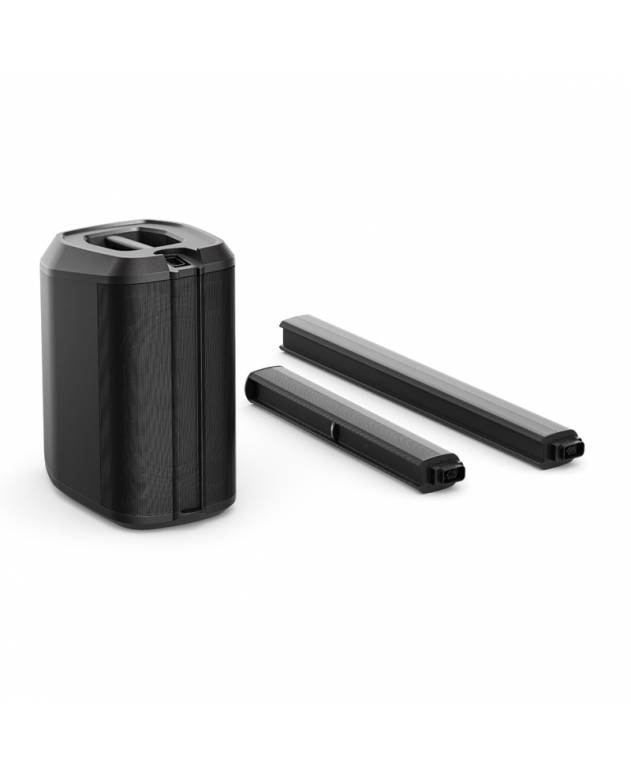

  • Go from vehicle to venue in one trip with a modular three-piece system that’s easier to pack, carry, and set up

  • Select between optimized system EQ presets for live music, recorded music, and more

  • Connect various audio sources easily via built-in mixer with two combo XLR-1/4-inch phantom-powered inputs, 1/4-inch and 1/8-inch (3.5 mm) aux input, plus Bluetooth® streaming — and access system EQ and ToneMatch presets, volume, tone, and reverb via illuminated controls

  • Add in even more instruments and other audio sources via dedicated ToneMatch port; one cable provides both power and digital audio between the system and a Bose T4S or T8S mixer (optional)

  • Take wireless control with the Bose Music app on your smartphone to adjust settings instantly from your phone, roam the room and fine-tune, and access the ToneMatch library of custom EQ presets

  • Stream high-quality Bluetooth® audio from compatible devices





Applications



Designed for a wide range of applications, including:

  • Houses of worship
  • Schools and universities
  • Resorts and hospitality venues
  • Live music performances
  • Business presentations
  • Mobile DJs





Technical Specification



AMPLIFICATION

  • Number of Channels: 2

  • Power Class: Class D



AUDIO INPUTS, ANALOG

  • Input Channels: 3

  • Connectors: (1) XLR-1/4-in TRS combo, (1) 1/4-in TRS, (1) 1/8-in TRS, Bluetooth audio streaming

  • Sensitivity Options: -100 dB to +75 dB, XLR / -115 dB to +60 dB, TRS, input to driver / -105 dB to +50 dB, 3.5 mm / -115 dB to +40 dB, TRS, input to driver

  • Phantom Power: 48 VDC, Channels 1 & 2



ELECTRICAL

  • AC Power Connector: IEC

  • AC Power Input: 100–240 VAC (±15%, 50/60 Hz)

  • Current Draw, Inrush: 15.8 A at 120 VAC, 60 Hz / 30.1 A at 230 VAC, 50 Hz



GENERAL

  • Software Applications: Bose Music (Android, iOS)

  • Computer Interface Connection: USB Type-C

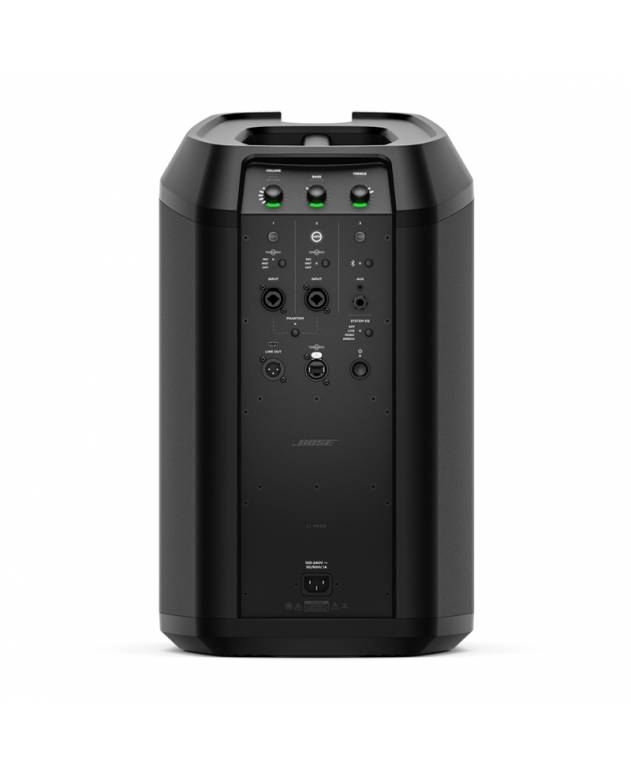

INDICATORS AND CONTROLS

  • Controls, Rear Panel: 3 digital rotary encoders

  • LED Status Indicators: (1) standby LED, (3) channel parameter LED rings, (3) signal/clip LEDs, (3) mute LEDs, (1) phantom power LED, (2) ToneMatch LEDs, (1) Bluetooth LED, (4) system EQ LEDs



INTEGRATED DSP

  • DSP-Enabled: Yes

  • Presets: ToneMatch presets

  • Processing Functions: System EQ, reverb



PHYSICAL

  • Colors: Black

  • Enclosure Material: Power stand: High-impact polypropylene / Extension & Array: High-impact ABS

  • Grille: Perforated steel, powder-coated finish

  • Cooling System: Convection cooling

  • Product Dimensions (H×W×D): 78.7 in × 12.5 in × 17.9 in (2000 mm × 317 mm × 456 mm)

  • Shipping Dimensions (H×W×D): 37.4 in × 15.8 in × 24.8 in (950 mm × 400 mm × 630 mm)

  • Net Weight: 38.2 lb (17.4 kg)

  • Shipping Weight: 47.2 lb (21.4 kg)



PERFORMANCE

  • Frequency Range (-10 dB): 33 Hz – 18 kHz

  • Coverage, Horizontal: 180°

  • Calculated Maximum SPL @ 1 m: 112 dB

  • Power Handling, Peak: 240 W

  • Coverage, Vertical: 40°



TRANSDUCERS

  • Crossover: 200 Hz

  • High-Frequency: 8 × 2 in (51 mm) drivers

  • Low-Frequency: 1 × RaceTrack low-frequency 7 × 13 in (178 × 330 mm) driver







  • Bose L1 PRO8 Portable Line Array Speaker System with Bluetooth
  • Mid-High Array
  • Array Extension
  • Subwoofer Power Stand
  • Power Cord
  • Carry Bag

2 Years
